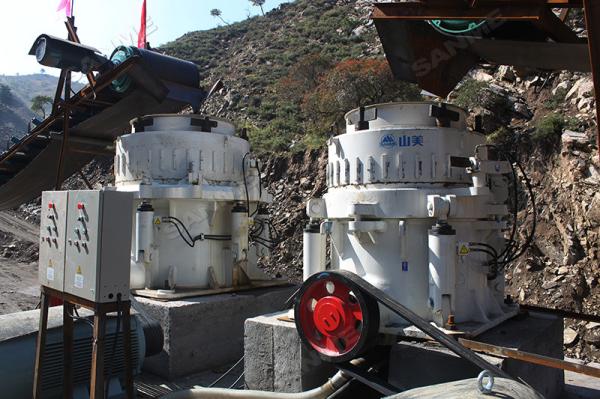

Hydraulic Quarry C120t/H 75kw Cone Crusher Machine

Product Categories

Shanghai Sanme Mining Machinery Corp., Ltd

Contact Now

Hydraulic Quarry C120t/H 75kw Cone Crusher Machine

Ask Lasest Price
Brand Name :	SANME
Model Number :	SMH120, SMH180, SMH250, SMH350, SMH550
Certification :	ISO&CE
Price :	Negotiate
Payment Terms :	T/T, L/C
Supply Ability :	50 sets per Month
Delivery Time :	2 months

Add to Cart

Product Details
Company Profile

Hydraulic Quarry C120t/H 75kw Cone Crusher Machine

Cone Crusher Machine With Full Hydraulic Configuration , Simple Operation

Features of SMH Cone Crusher

1. Higher capacity and less wear costs.

2. Wide range of application suitability.

3. Easy to maintain, reduce the downtime and maintenance costs.

4. Stable running performance and easy operation.

5. Stable bevel wheel transmission device

6. Balanced run out rotation ensures capacity.

7. Proper operation, continuously load until the machine shut down scheduled.

ADVANTAGE OF SMH SERIES CONE CRUSHER

Optimized cavity, higher capacity

The mantle of the same diameter, the crushing stroke longer, larger crushing ratio, high output, low energy consumption;The effect of laminated crushing under full load makes particle-size distribution more steady, shape of product (cubic) more excellent.

Minimize the amount of downtime

SMH Series Cone Crushers adopt hydraulic locking and overload protection. When something which cannot be broken enters into the crushing chamber, hydraulic system will release the impact force smoothly to protect the crusher, and it can get back to the former discharging setting after the foreign material getting through, which can prevent block of the crusher.

PRODUCT DATA

Technical Data of SMH Series Standard Head Hydraulic Cone Crusher:

Model	Max Feeding Size(mm)	Discharge Range(mm)	Moter Power(kw)	Capacity(t/h) -- open circuit,closed discharge(mm)
Model	Max Feeding Size(mm)	Discharge Range(mm)	Moter Power(kw)	9	13	16	19	22	26	32	38	51	63	76	89
SMH120C	160	22~32	75-90					120	130	150
SMH120M	130	13~26	75-90		70	85	100	120	130
SMH120F	102	9~22	75-90	58	70	85	90	110
SMH180C	180	22~32	132-160					185	195	215
SMH180M	140	13~32	132-160		90	115	135	160	180	200
SMH180F	60	9~22	132-160	60	80	100	120	140
SMH250EC	260	26~51	160-200						250	290	340	395
SMH250C	220	19~51	160-200				182	209	236	279	334	365
SMH250M	150	16~38	160-200			140	165	185	220	275	330
SMH250F	115	13~31	160-200		115	133	156	176	192	226
SMH350EC	315	38~63	250-280								555	649	766
SMH350C	230	26~63	250-280						366	430	468	629	657
SMH350M	205	22~52	250-280					296	343	387	427	479
SMH350F	180	16~38	250-280			212	239	270	320	355	374
SMH550EC	450	38~89	355-400								920	1179	1380	1475	1566
SMH550C	350	31~76	355-400							800	850	1100	1288	1398
SMH550M	320	25~63	355-400						612	735	815	980	1137
SMH550F	268	19~52	355-400				392	453	535	620	725	867

Technical Date of SMH Series Short Head Hydraulic Cone Crusher:

Model	Max Feeding Size(mm)	Discharge Range(mm)	Moter Power(kw)	Capacity(t/h) -- open circuit,closed discharge(mm)
Model	Max Feeding Size(mm)	Discharge Range(mm)	Moter Power(kw)	3	5	6	9	13	16	19	22	26	32	38
SMH120DC	70	6-19	75-90			62	82	102	123	138
SMH120DM	51	5-16	75-90		45	58	78	99	116
SMH120DF	35	3-13	75-90	30	45	58	78	95
SMH180DC	70	6-9	75-90			72	90	108	131	158
SMH180DM	51	5-16	75-90		68	76	95	118	145
SMH180DF	35	3-13	75-90		70	82	95	120
SMH250DC	89	9-22	160-220				126	168	196	215	252
SMH250DM	70	6-16	160-220			88	117	156	172
SMH250DF	54	5-16	160-220		63	86	115	143	169
SMH350DEC	133	13-25	250-280					262	308	322	358	385
SMH350DC	133	10-25	250-280				208	262	308	322	358	385
SMH350DM	89	6-19	250-280			136	186	233	260	293
SMH350DF	70	6-13	250-280			136	186	233
SMH550DEC	203	16-25	400						516	593	656	696
SMH550DC	178	13-25	400					455	498	552	600	643
SMH550DM	133	10-19	400				355	416	472	530
SMH550DF	105	6-16	400			276	355	385	448

SMH series cone crusher.pdf
