Shanghai Sanme Mining Machinery Corp., Ltd, Sino-German JV Holding Company
6 Years
| Ask Lasest Price | |
| Brand Name : | SANME |
| Model Number : | XS2600,XS2600II,XS2800,XS3200,XS3600 |
| Certification : | ISO&CE |
| Payment Terms : | T/T, L/C |
| Delivery Time : | 2 months |
| Price : | Negotiate |
| Supply Ability : | 50 sets per Month |

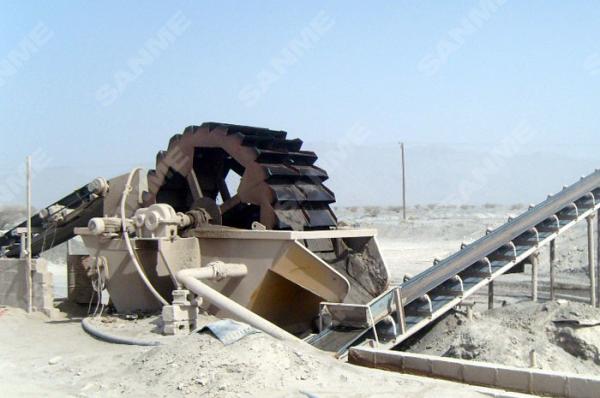

XS Series Wheel Sand Washer 50-2180t/H High Capacity New Structure
XS bucket-typed Sand Washer is a new type structure washing machine combined with sand industry situations and practical experience for many years. The machine is widely used in washing works of aggregate, which improve sand quality after deducted mixed stone powder and sundry.
Sand washer is used to removing the dust in ore and grading ore for
the metallurgic, construction material and hydro power industries.
It is suitable for the washing work of the fine grain and coarse
granularity material.
sand washer is suitable for fine grain and coarse granularity
material the washing work,especially suitable for washing the ore
for building and ore for road. sand washer has the characteristics
of rational construction, easy maintenance, big capacity, low power
consumption and high washing cleanliness. The novel leak proof
structure,fully enclosed oil bath type transmission device and
adjustable overflow weir board guarantee the high performance of
screw ore washer.
Sand Washer Application
1. Separation of fine particles and liquid from coarse particles
2. Separation of light particles from heavy particles
3. Separation of the particles into a number of products graded
according to size
4. Separation of liquid from solid particles
| Model | XS2600 | XS2600 II | XS2800 | XS3200 | XS3600 |
| Diameter of The Wheel Bucket(mm) | 2600 | 2600 | 2800 | 3200 | 3600 |
| Rotation Rater(r/min) | 2.5 | 2.5 | 1.2 | 1 | 1 |
| Maximum Feeding Size(mm) | ≤ 10 | ≤ 10 | ≤ 10 | ≤ 10 | ≤ 10 |
| Capacity (t/h) | 20~50 | 30~70 | 50~100 | 80~120 | 120~180 |
| Motor Power(kw) | 5.5 | 5.5 | 7.5 | 11 | 15 |
| Overall Dimensions (L×W×H)(mm) | 3515×2070×2672 | 3515×2270×2672 | 3900×3300×2990 | 3965×4440×3410 | 4355×4505×3810 |
| Weight(kg) | 2500 | 2900 | 3980 | 7270 | 9430 |
|
|
