Hydraulic Mining Crushing Machine Higher Capacity Low noise For Fine Crushing

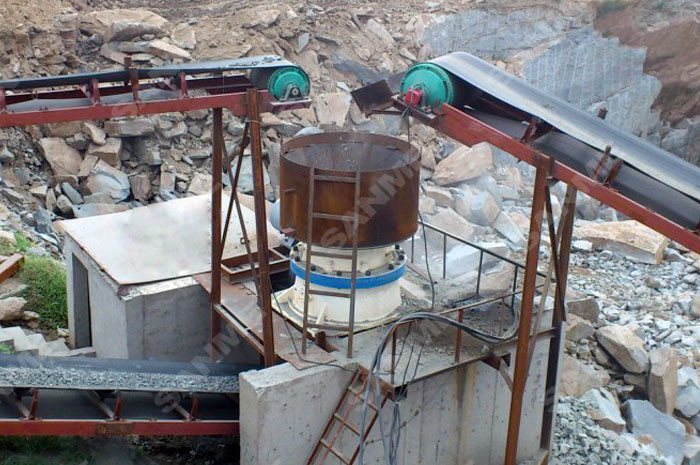

Application Range of Hydraulic Cone Crusher
Cone Crusher is widely used for secondary and fine crushing in the fields of mining, chemical industry, building materials, metallurgy and so on.
1. Optimized cavity, higher capacity,better quality
SMG series hydraulic cone crusher is designed for optional variety
of cavities. By selecting suitable cavities and eccentricity, it
ensures the producing demand of customer in maximum and realizes
high capacity.
2. Resistant wear part consumption and low operation cost
The discharging open can be adjusted timely and conveniently with
hydraulic adjusting design, which realizes full load operation,
lowers wear parts consumption and reduces operating cost.
3. Easy cavities exchange
Due to the same body structure, we can get different crushing
cavity by changing liner plate to fulfill the various processing
for coarse and fine crushing.
4. Advanced hydraulic technology offers easy operation and maintenance
Due to adopting advanced hydraulic technology, overload protection
can effectively be realized, which simplify the structure of
crusher and reduces its weight. All maintenance and inspection can
be fulfilled on the top of crusher, which ensures easy maintenance.
5. Large feeding opening design
Large feeding opening design is adopted by S type SMG series cone
crusher to provide good combination with primary jaw crusher, which
greatly improves the crushing capacity. While processing gravels,
it can replace jaw crusher and be used as primary crusher.
The crushing structure of SMG series single-cylinder hydraulic cone crusher makes the crusher adjustment conveniently, and can adjust the discharge opening freely and simply. The intelligenceauto- control system can keep the crusher at the best work situation, and realizes automatic compensation function between the plate of inner and outer awls.We can set and adjust the discharge opening exactly through the operation panel, also can fulfill the wearing capacity of wear part by several buttons on the control panel. Meanwhile, by adopting the single-cylinder structure, the whole crusher body is compact and greatly reduces the channel for oiling and adjustment structure outside.
| Model | Max Feeding Size(mm) | Moter power(kw) | Capacities(t/h) | Total weight(kg) |
| SMG100S | 240 | 90 | 70-165 | 7500 |
| SMG200S | 360 | 160 | 105-330 | 12000 |
| SMG300S | 450 | 250 | 215-586 | 22500 |
| SMG500S | 500 | 315 | 290-860 | 36300 |
| Model | Max Feeding Size(mm) | Moter power(kw) | Capacities(t/h) | Total weight(kg) |
| SMG100 | 150 | 90 | 25-120 | 5700 |
| SMG200 | 200 | 160 | 63-215 | 9500 |
| SMG300 | 215 | 250 | 95-396 | 17500 |
| SMG500 | 275 | 315 | 175-638 | 28000 |
| SMG700 | 300 | 520 | 350-1502 | 53000 |
| SMG800 | 370 | 600 | 241-2185 | 75000 |
Note:Capacity is the total production tons of open circuit when the
material bulk density to be crushed is 1.6t/m3. Production capacity
will be affected by physics character of material and feeding
method, feeding size and material composition, and so on.
|
|
