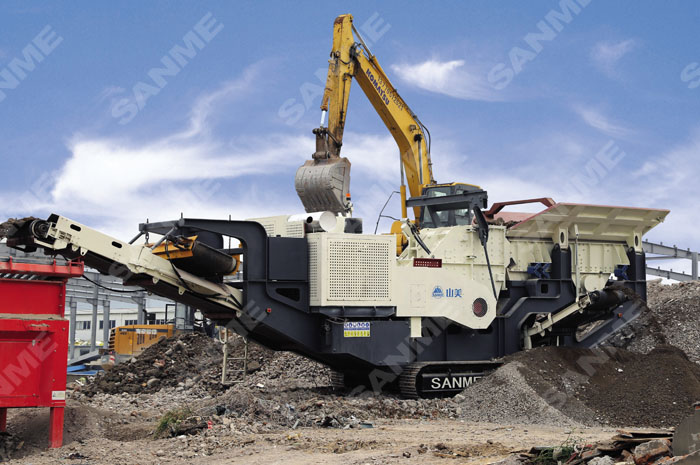

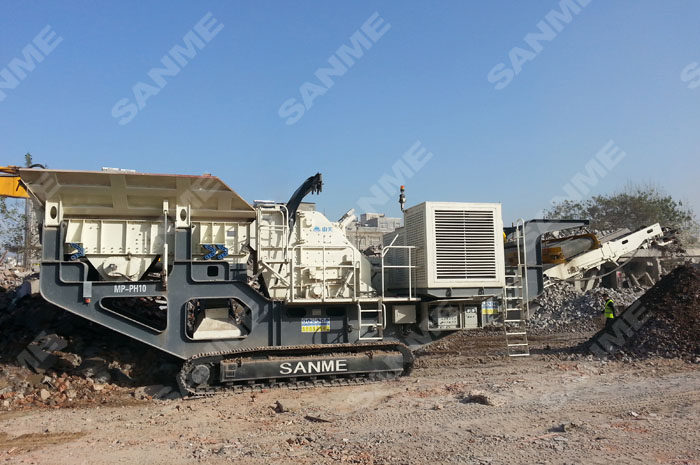

MP-PH Series Mobile Impactor Plant is designed by SK Group Germany, it is an all-purpose, compact and modular impact crushing plant for aggregates and recycling industries.
The vibration feeder is fitted with a two-deck grizzly section for an optimum pre-scaling, thus maximizing the total performance and reducing wear.
The material, which has already the required grain size, is conveyed via a bypass past the impact crusher directly to the discharge chute. Thus the efficiency of the complete plant is increased.
The MP-PH crushing plant is fitted with the field-tested impact crusher. The hydraulic controlled impact crusher guarantees a constant product quality and a high availability.
The active hydraulic permit a trouble free material flow via the movable inlet plate of the impact crusher.
The diesel-direct drive in combination with a CATERPILLAR motor allows for a maximum performance at a small amount of space.
The processing plant is easy to operate with the remote control.
Magnetic separator, lateral discharge belt and water spray system are optionally available as approved modules.
For the optimization of performance and availability the mobile processing plant is operated by an intelligent control in the background.
| Model | MP-PH 10 | MP-PH 14 |
| Impact crusher | AP-PH-A 1010 | AP-PH-A 1414 |
| Feed opening size(mm×mm) | 810×1030 | 1025×1360 |
| Max feed size(m3) | 0.3 | 0.5 |
| Max edge length in one direction(mm) | 800 | 1000 |
| Crushing capacity(t/h) | up to 250 | up to 480 |
| Drive | diesel-direct | diesel-direct |
| Driving Unit | ||
| Engine | CAT C9 | CAT C18 |
| Performance (kw) | 242 | 470 |
| Feed hopper | ||
| Hopper volume(m3) | 4.8 | 8.5 |
| Grizzly feeder with pre-screening(two-deck) | ||
| Drive | hydraulic | hydraulic |
| Main conveyor belt | ||
| Discharge height(mm) | 3100 | 3500 |
| Drive | hydraulic | hydraulic |
| Side conveyor belt (option) | ||
| Discharge Height(mm) | 1900 | 3500 |
| Drive | hydraulic | hydraulic |
| For transportation the head-piece can be folded | ||
| Crawler unit | ||
| Drive | hydraulic | hydraulic |
| Permanent magnetic separator | ||
| Magnetic separator | option | option |
| Dimensions and weight | ||
| Working dimensions | ||
| -length (mm) | 14600 | 18000 |
| -width (mm) | 4500 | 6000 |
| -height (mm) | 4200 | 4800 |
| Transport dimensions | ||
| - length (mm) | 13300 | 17000 |
| - width (mm) | 3350 | 3730 |
| - height (mm) | 3776 | 4000 |
| Approx weight (t) | 43 | 70 |
Note: Capacity is total tons per hour passing through crusher at open circuit when bulk density of feeding is 1.6t/m³. Capacities are relative to physics character and type of feeding, feeding size and composition.
|
|
