Shanghai Sanme Mining Machinery Corp., Ltd, Sino-German JV Holding Company
6 Years
| Ask Lasest Price | |
| Brand Name : | SANME |
| Model Number : | MP-J6,MP-J7,MP-J8,MP-J10, |
| Certification : | ISO&CE |
| Price : | Negotiate |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 50 sets per Month |
| Delivery Time : | 2 months |

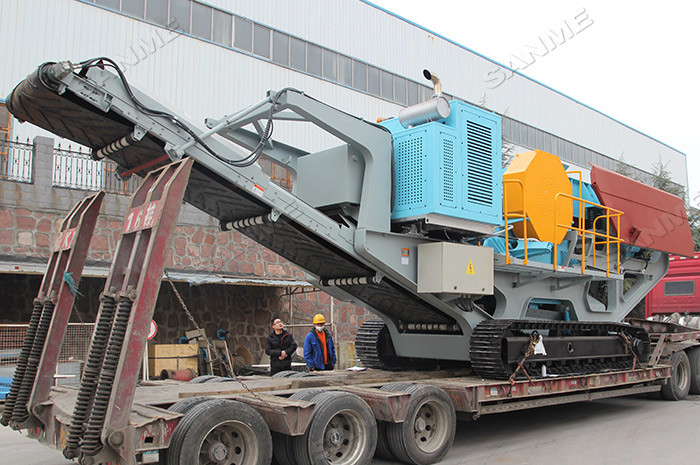

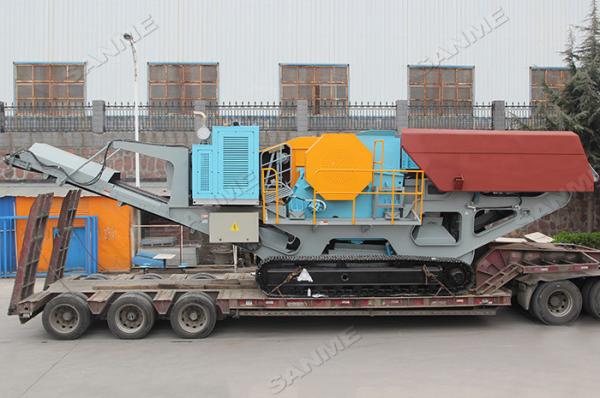

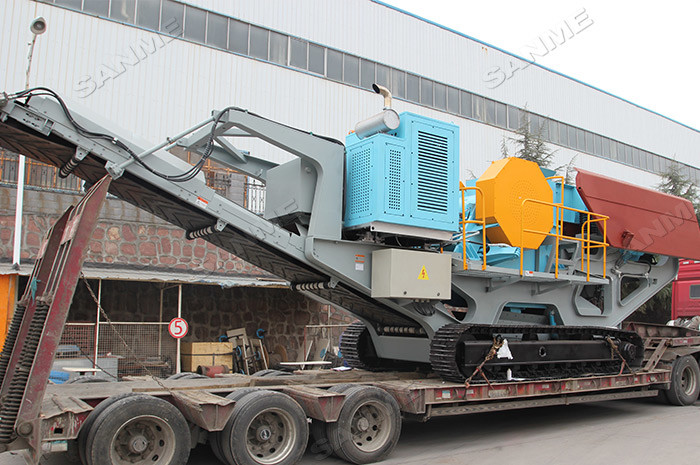

Sanme mobile jaw crusher is featured uncompromising design and sturdiness. The outstanding overall performance of Fangda wheel-mounted mobile jaw crusher results from the harmonious interplay of all components. In this way, the mobile jaw plant provides a variety of innovative solutions with regard to efficiency, availability, versatility. Sanme mobile jaw plant is your best choice.
| Model | MP-J6 | MP-J7 | MP-J8 | MP-J10 |
| Size of Feed opening(mm×mm) | 600×1060 | 760×1000 | 850×1150 | 1070×1400 |
| Max Feed Size(mm) | 500 | 630 | 720 | 950 |
| Gap width(mm) | 60-175 | 70-200 | 70-220 | 100-250 |
| Capacity(t/h) | up to 280 | up to 400 | up to 500 | up to 800 |
| Driving Unit | ||||
| Engine | Cummins Tier3 | Cat C9 | Cat C12 | Cat C15 |
| Motor Power (kw) | 164 | 242 | 317 | 390 |
| Feed Hopper | ||||
| Hopper volume (m3) | 6 | 7 | 8 | 10 |
| Grizzly Feeder With Pre-screening | ||||
| Drive | hydraulic | hydraulic | hydraulic | hydraulic |
| Main Conveyor Belt | ||||
| Belt width (mm) | 1000 | 1000 | 1200 | 1400 |
| Discharge height (mm) | 2900 | 3300 | 3800 | 4000 |
| Drive | hydraulic | hydraulic | hydraulic | hydraulic |
| Side Conveyor Belt | ||||
| Discharge height (mm) | 2140 | 2400 | 3000 | 3200 |
| Drive | hydraulic | hydraulic | hydraulic | hydraulic |
| For transportation the head-piece can be folded | ||||
| Crawler Unit | ||||
| Drive | hydraulic | hydraulic | hydraulic | hydraulic |
| Permanent Magnetic Separator | ||||
| Magnetic separator | option | option | option | option |
| Dimensions and Weights | ||||
| Working dimensions | ||||
| -length(mm) | 12600 | 14800 | 16000 | 16500 |
| -width(mm) | 4060 | 4100 | 4200 | 4300 |
| -height(mm) | 4160 | 4400 | 4400 | 6000 |
| Transport dimensions | ||||
| - length(mm) | 12600 | 14600 | 16000 | 16000 |
| - width(mm) | 2760 | 2850 | 3200 | 3500 |
| - height(mm) | 3460 | 3900 | 3800 | 3900 |
| Weight(t) Approximately | 39 | 48 | 65 | 115 |
Note:Capacity is the total production tons of open circuit when the material bulk density to be crushed is 1.6t/m3. Production capacity will be affected by physics character of material and feeding method, feeding size and material composition, and so on.
